Box Header
Box Header is usually called: which is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and the ox horn connector is that the simple ox horn connector removes the buckles on both sides.
Classification of Box Header: Box Header are divided in o 1.27mm pitch Box Header, 2.0mm pitch Box Header and 2.54mm pitch Box Header according to PIN needle gauge. The diameter of the square row needles used will be changed accordingly according to the different pitch.According to the installation form, it can be divided in o straight needle Box Header, curved needle Box Header and SMT patch Box Header.
Function of Box Header: Box Header is welded on PCB board, connect IDC cable of corresponding specifications, and then form the circuit connection mode required by the designer with other circuits. Usually used to transmit control signals and weak currents.
Application of Box Header: The products are widely used in computer mainboard, liquid crystal display, telecommunication card, memory, mobile hard disk, card reader, digital camera, MP3, PDA, liquid crystal TV, switch, automobile anti-theft device, video phone, cordless phone and various communication equipment.
| Product Name | China factory 1.27mm pitch SMT / SMD/ 180 degree or right angle with CAP box header connector |
| Pitch | 1.27mm |
| Detail | Box header connector |
| Housing | PA9T / LCP +30%G.F UL94V-0 |
| Number of Pin | 4~100P |
| Brand Name | Yxcon |
| Contact Material | Brass |
| Insulator Material | PBT ,PA6T ,PA9T ,LCP ,PA66 ,PA46 ,PPS ,PA115(Halogen Free) |
| Rating Current | 1.00AMP |
| Contact Resistance | 20mΩ Max |
| Withstanding Voltage | AC 500V/Minute |
| Insulating Resistance | 1000MΩ Min |
| Temperture Range | -40°C to +105°C |
| Plating | Gold(Au) or Tin(Sn) plated over Nickel(Ni) |
| Packaging | PE Bag,Tube,Tape&Reel,Tube+CAP,Tray,Plastic Box |

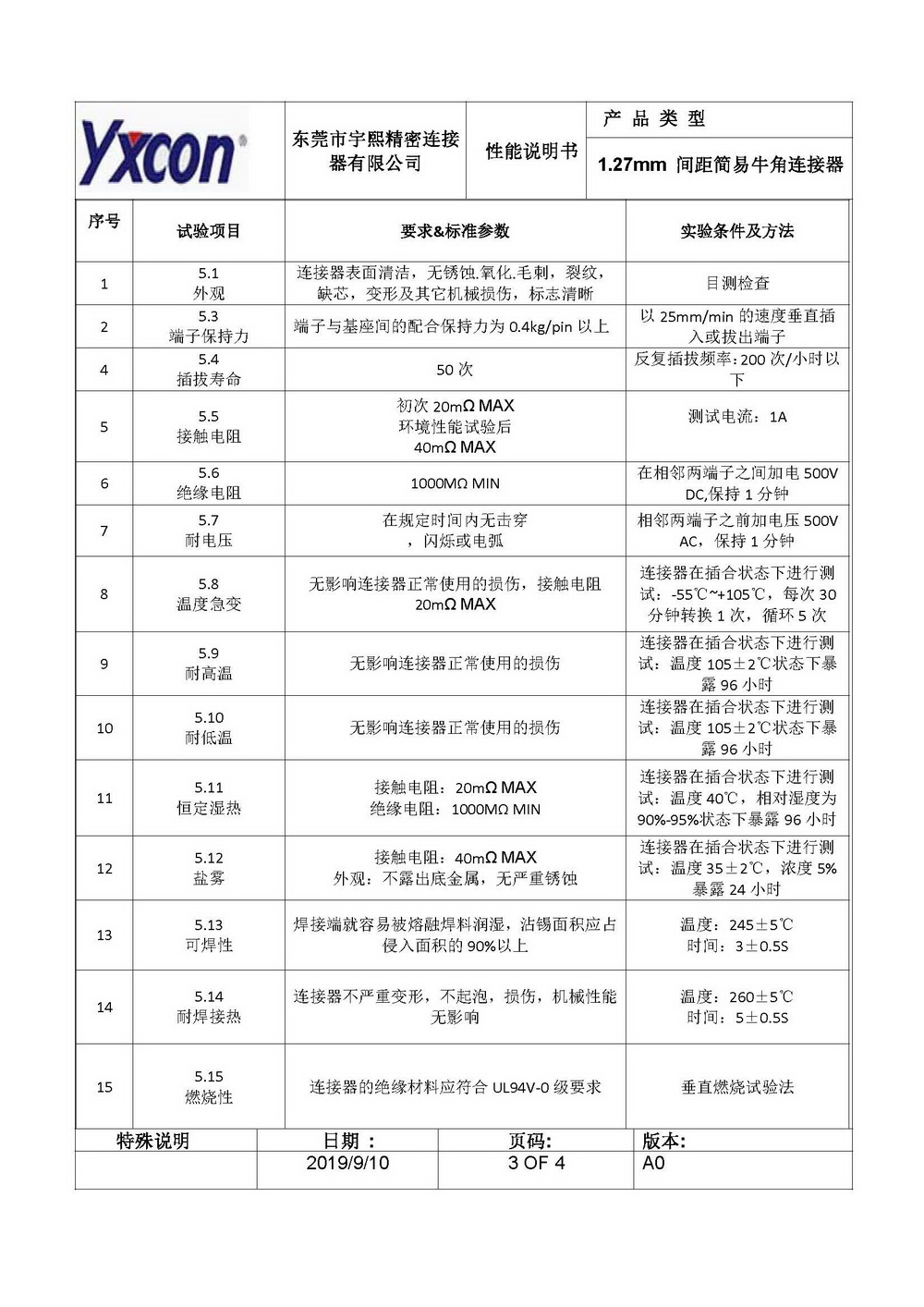

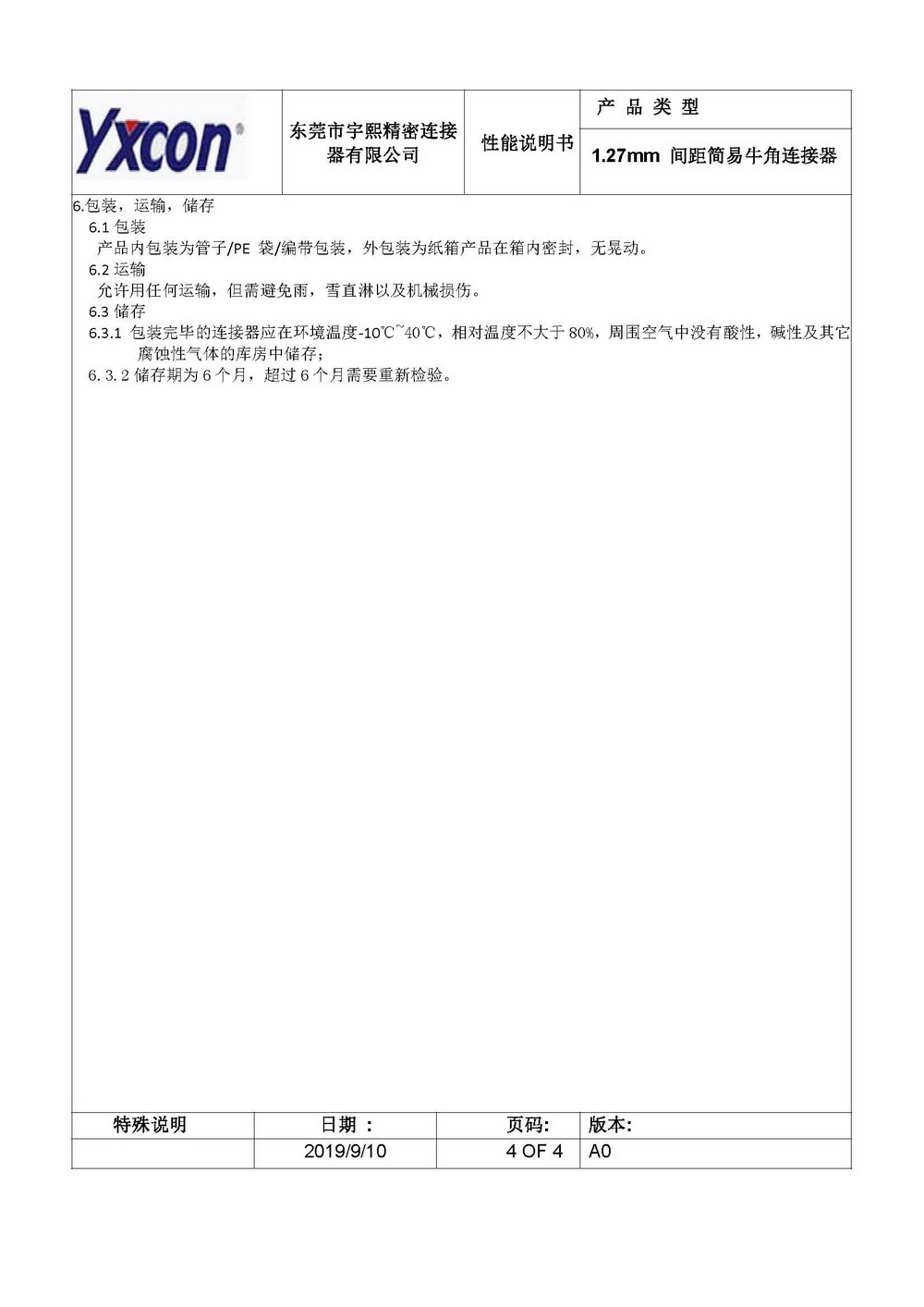

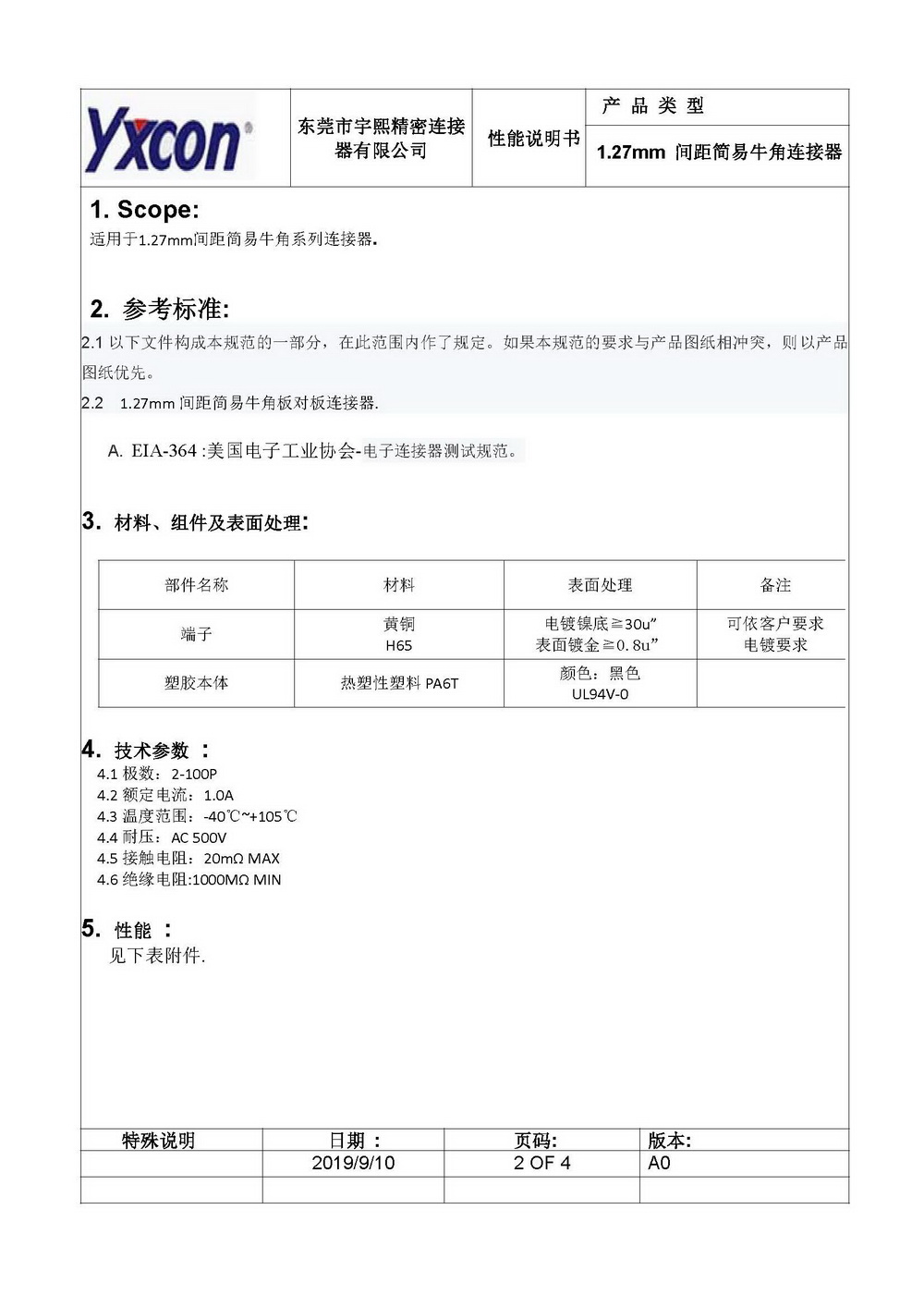

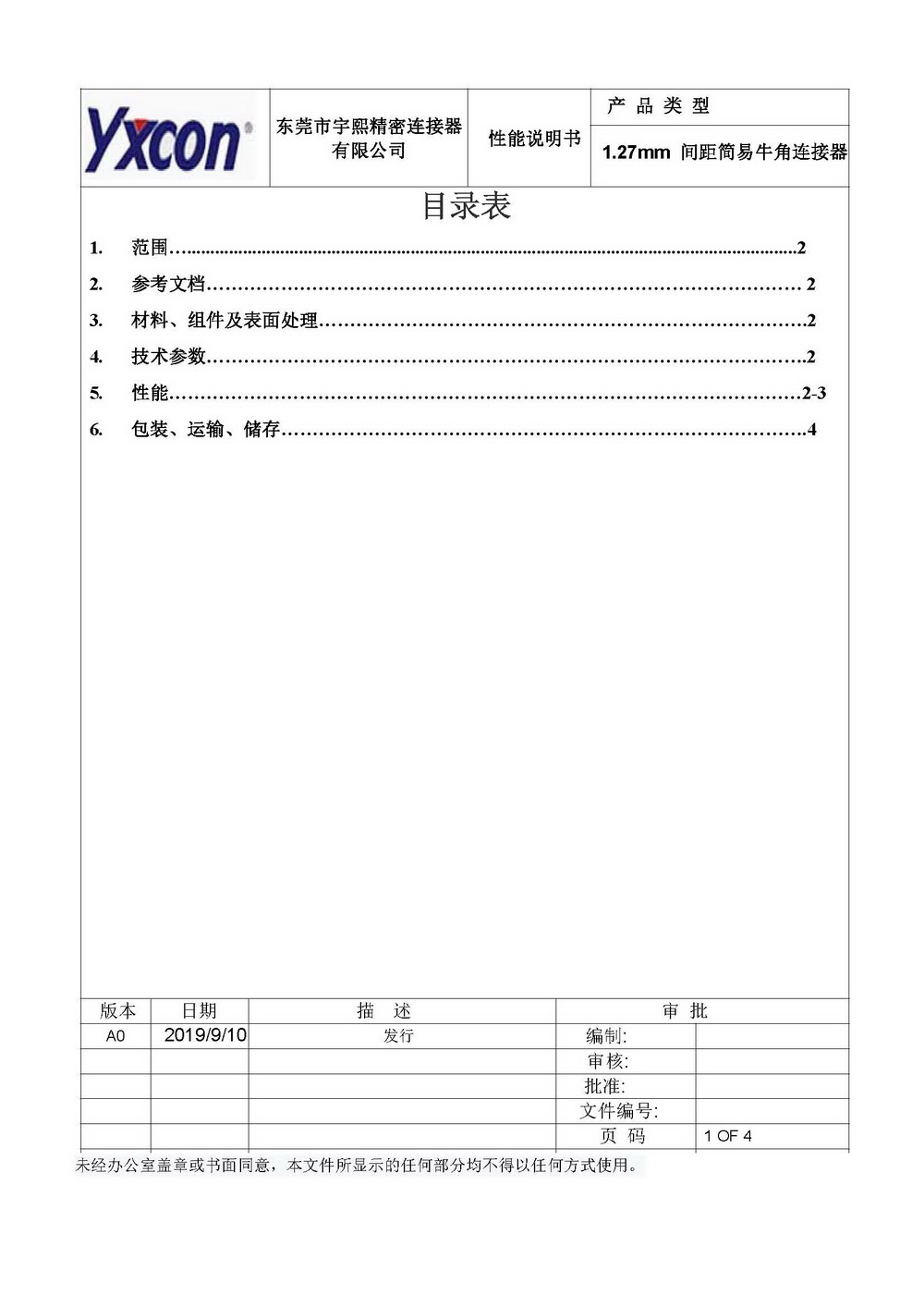

Specifications
