Pitch 1.27mm Ejector Header Connector Right Angle

Ejector HeaderEjector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.Classificat

Box Header / Ejector Header Connector
pitch 1.27mm
Pitch 1.27mm Ejector Header Connector Right Angle
Pitch 1.27mm Ejector Header Connector Right Angle
Production Status Discontinued
Capacity Status 0
Inquire Now
Contact Us
Dongguan Yuxi Precision Connector Co., Ltd.
Nikki Cen
No. 2, Yucheng Road, Shaxin Industrial Zone, Chang\\\\\\\'an Town, Dongguan City, Guangdong Province, China
+86 769-8539 7456 / 8539 7457
sales006@yxcon.com
Nikki Cen
+86 13712869134
sales006@yxcon.com
Pitch 1.27mm Ejector Header Connector Right Angle
Ejector HeaderEjector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.Classificat
Specifications
：YXCON-556 ：6~64p
  • Product Details
  • Downloads
  • Recommended Products

Ejector Header

Ejector Header has two ox horn-like ear buttons (long ears and short ears), so people call this connector Ejector Header, which is a very simple internal wiring device to use.


Classification of Ejector Header: according to the spacing of PIN pins, Ejector Header with spacing of 1.27MM, Ejector Header with spacing of 2.0MM, Ejector Header with spacing of 2.54MM; According to the connection mode, it can be divided in o direct insrtion (180 degrees), bent insrtion (90 degrees) and SMT


Application of Ejector Header: Mainly used in computer equipment, industrial automation equipment, digital products, security equipment, electronic instruments, new energy products, medical devices and other fields

Packaging & Delivery

  • Packaging Details

  • Tube, PE bag,Tape & Reel, Tube +CAP, Plastic Box,Tray, different kinds of Pin Header are packed in different way.

  • Port

  • Shenzhen ,Hongkong ,Guangzhou



Product Name:Dongguan supplier Pitch 1.27mm 2.0mm 2.54mm 2.5mm  straight, smt and   right angle  eject header connector with best price
Description:

Pitch: 1.27mm 2.54mm,2.0mm 1.0mm 5.08mm 3.0mm, 2.5mm

Row Number :one or dual row

Color: Black , Grey

Orietional :straight, SMT, U type , right angle

Insulator Height for choice:4.9mm ,5.5mm ,5.7mm ,6.5mm ,7.3mm ,9.0mm ,9.4mm
Contact Material:Brass
Contact Plating:Gold (Au) or Tin (Sn) Plated over Nickel (Ni)
Insulator/Plastic  Material:PA6T ,PA9T ,LCP , PBT, PA66, PPS, PA115 accpet customer special requirement
Rating Current:1.00AMP
Contact Resistance:20mΩ Max
Insulating  Resistance:1000  MΩ  Min
Withstanding Voltage:AC  500V/Minute
Temperture:-40°  C     to    +105°  C
Material Flammability Rating:UL94V-0

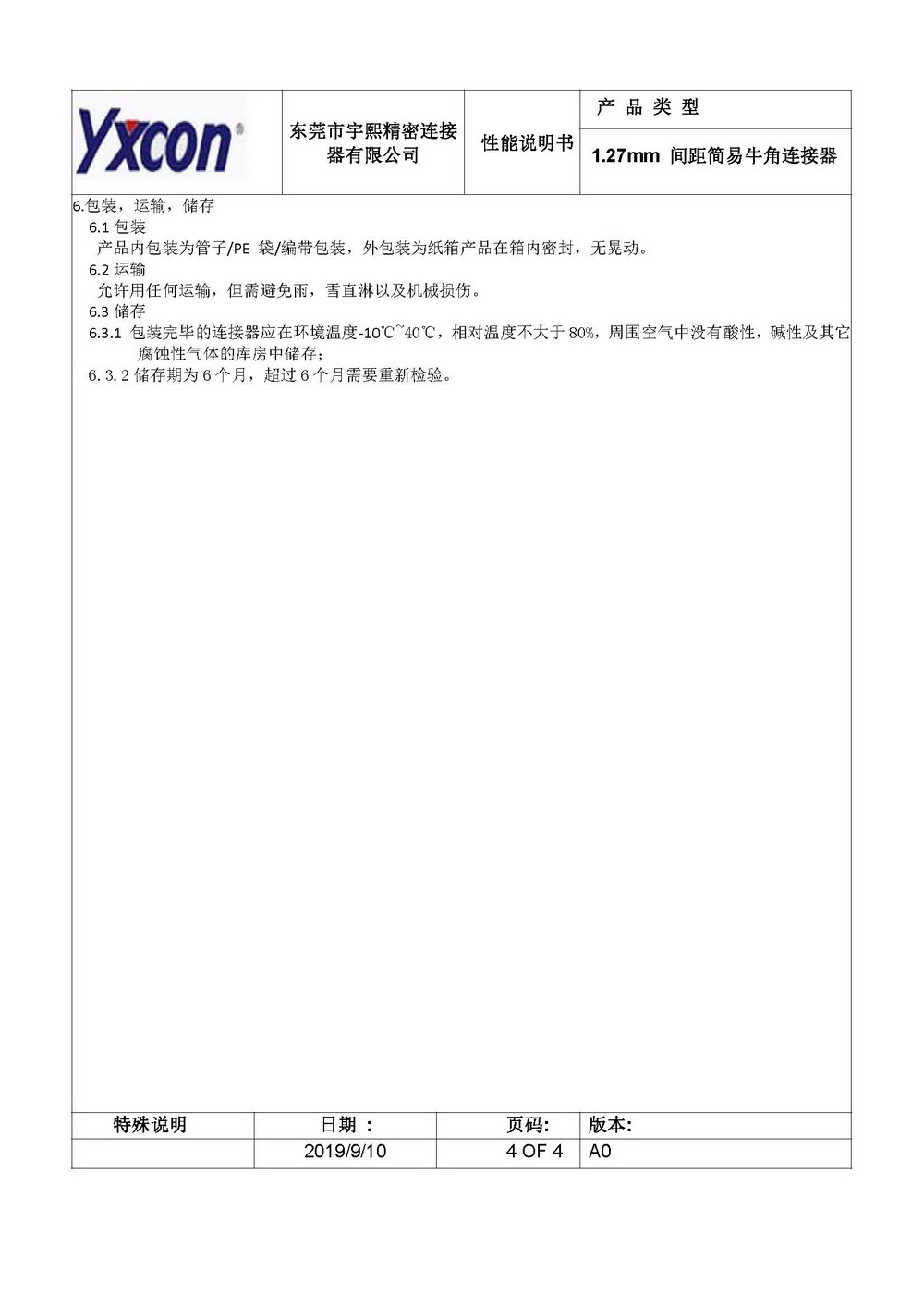

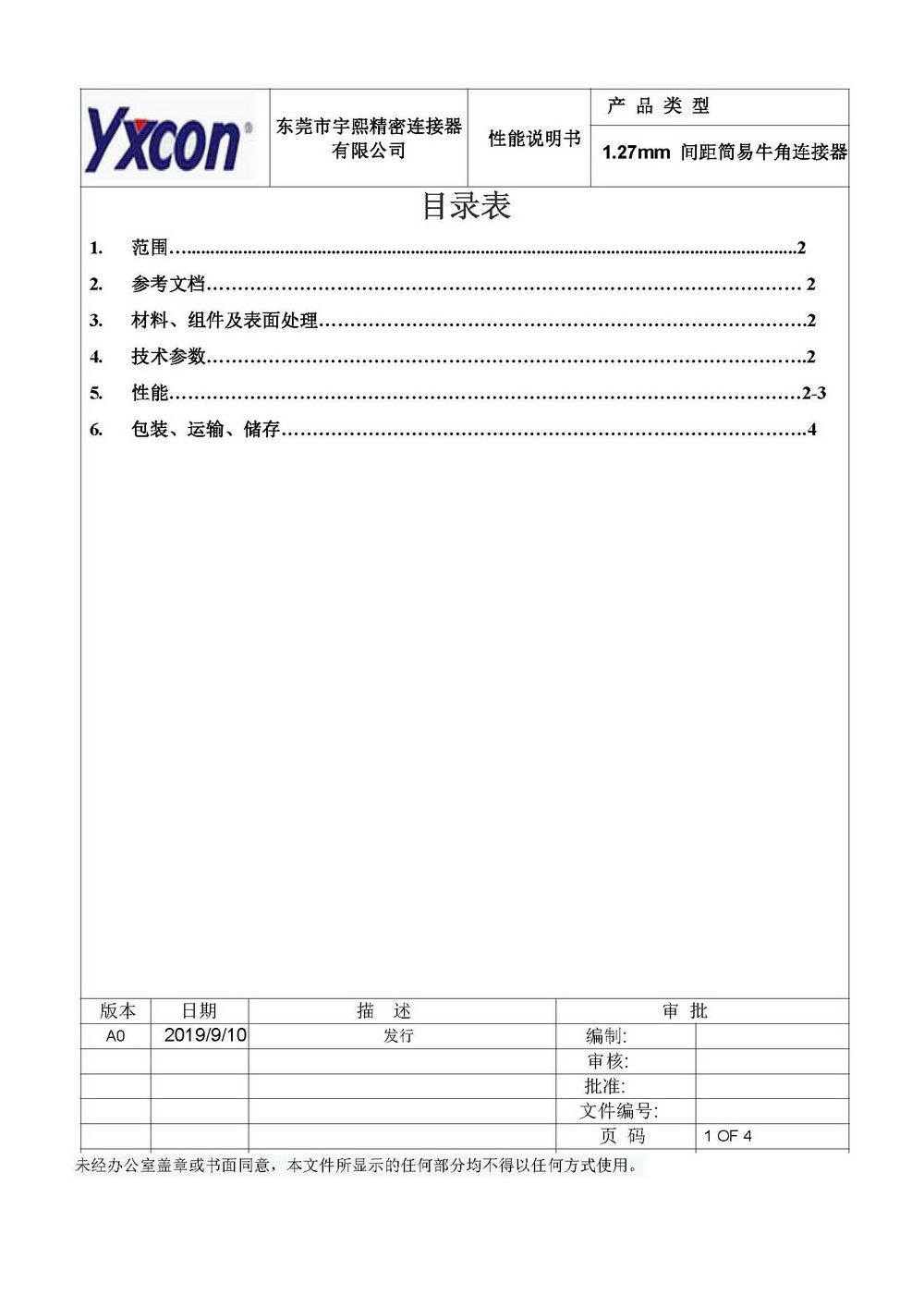

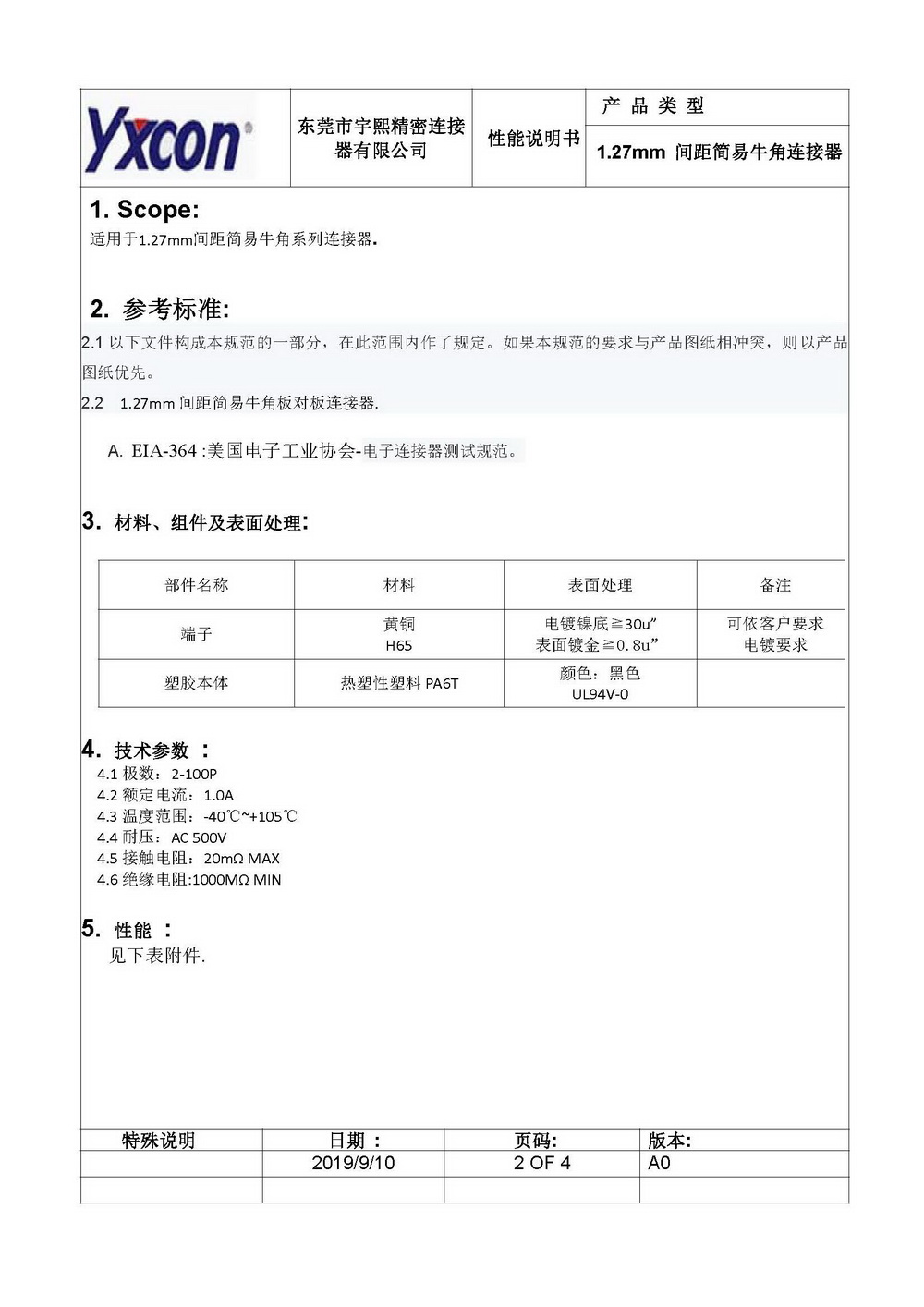

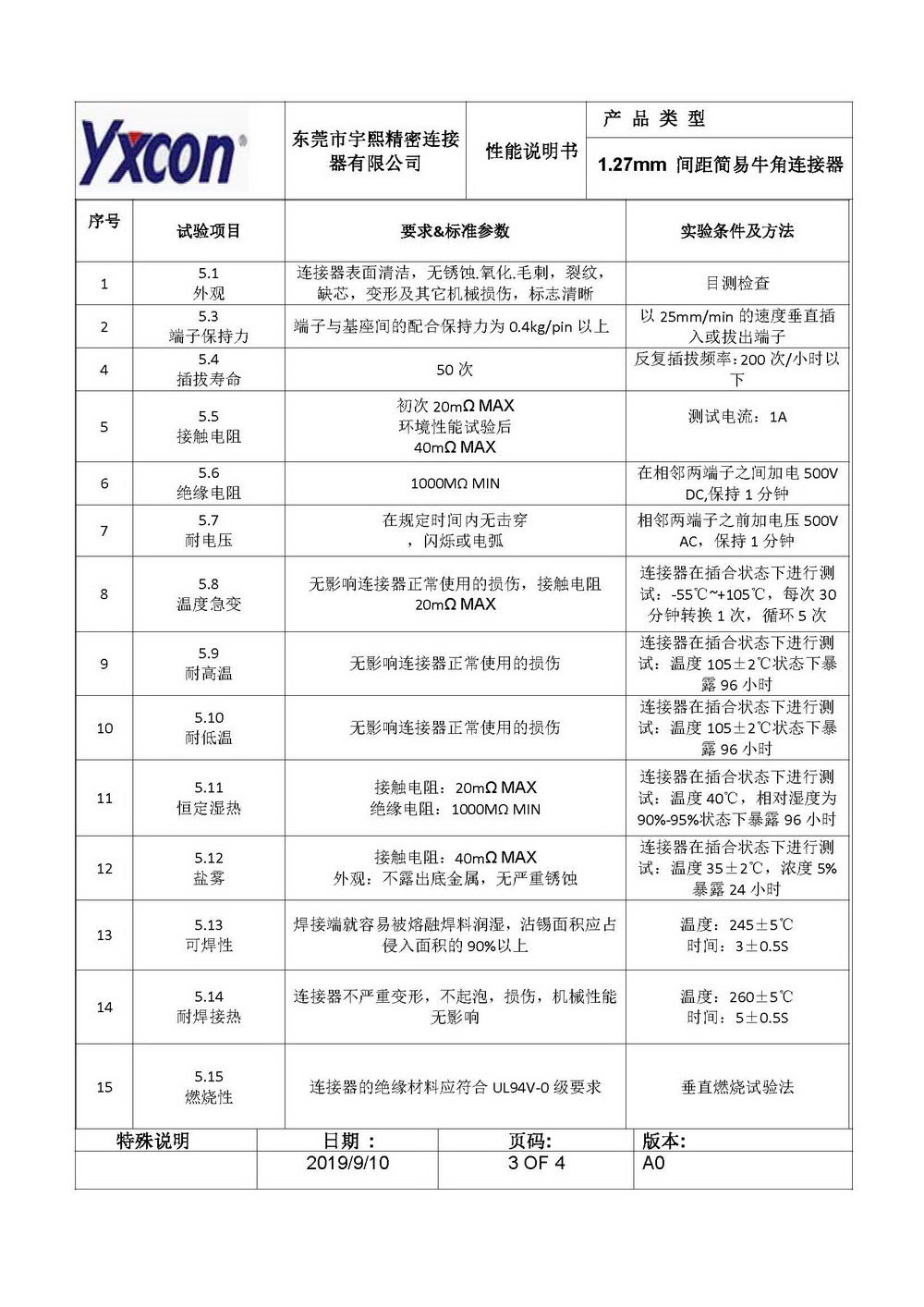

Specifications

板对板连接器板对板连接器板对板连接器板对板连接器
